瓦尔特 HELITRONIC VISION 400 L
展商：United Grinding Group Management AG
原产国/地区：德国

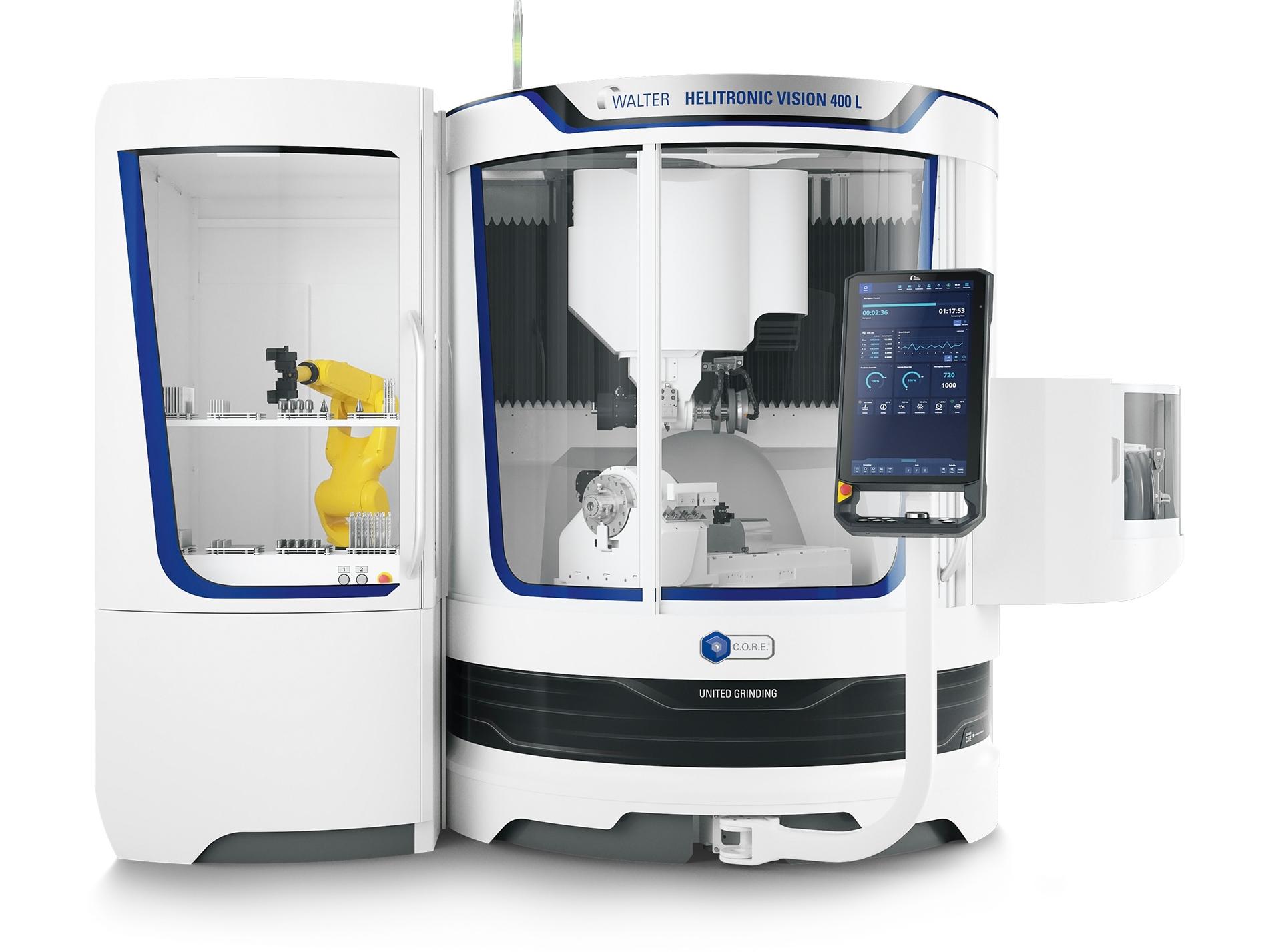

HELITRONIC VISION 400 L 采用C.O.R.E.技术的五轴数控工具磨床可以高精度地生产回转对称类工具和复杂几何形状的量产零件。其可加工直径范围3mm至315 mm，长度最大达420 mm，以及最大重量不超过50 kg的工具。 The tool grinding machine HELITRONIC VISION 400 L with C.O.R.E.-Technology produces rotationally symmetrical tools and production parts of complex geometries in high-precision production. It handles tools with a diameter of 3 to 315 mm, a tool length up to 420 mm and a piece weight of up to 50 kg.
展品详情
采用人造大理石材质的龙门式设计
WALTER龙门式设计采用人造大理石制成，可确保优秀的工具表面质量。该机型为您提供现阶段最佳的减震、热稳定性、驱动动力及很精密的磨削。
激光轮廓检测（选项）
创新激光轮廓检测选项提供了一个智能测量系统，该系统直接集成在工具磨削和电解机床中，可对圆柱形工具上的各种工具参数进行高度准确、非接触式测量。
直线驱动装置
5个数控轴均配备直线电机和扭矩电机的直驱装置，并由集成的高分辨率闭环测量系统加载和控制。从而可在精确运转的同时保持高动力性能。
扭矩驱动
HELITRONIC VISION 400 L 配备旋转轴C和A的扭矩电机直接驱动装置，可实现很高的精度和使用寿命。
扭矩电机
旋转轴 A 配备了扭矩电机, 最大转速为750/分钟。可用于功能的扩展，如内外圆或铲背磨削。
电机主轴
该机型配备一个强大的直接驱动电机主轴，一个主轴端装配了液体冷却系统。峰值功率为33千瓦。
Mineral cast gantry design
The WALTER mineral cast gantry design for optimal tool surfaces. The machine provides you with excellent vibration damping, temperature sensitivity, drive dynamics and ultimately grinding precision.
LASER CONTOUR CHECK
The new, innovative Laser Contour Check option offers an intelligent measuring system integrated directly in the tool grinding and eroding machine for the highly accurate, non-contact measurement of various tool parameters on cylindrical tools.
Linear drive
All five CNC axes are equipped with linear drives and are controlled by the integrated high resolution measurement systems. They create exact movements while at the same time creating high dynamics.
Torque drive
The HELITRONIC VISION 400 L has a rotary axis C with a torque drive for very high accuracy and durability.
Torque motor
The rotary axis A as a torque motor with a maximum of 750 min-1. For extended functionality, such as precise profile grinding or background lines.
Motor spindle
The tool grinding machine is equipped with a powerful direct driven motor spindle with a spindle end with a liquid cooling system. Spindle performance is 33 KW.
