斯图特 S41
展商：United Grinding Group Management AG
原产国/地区：瑞士

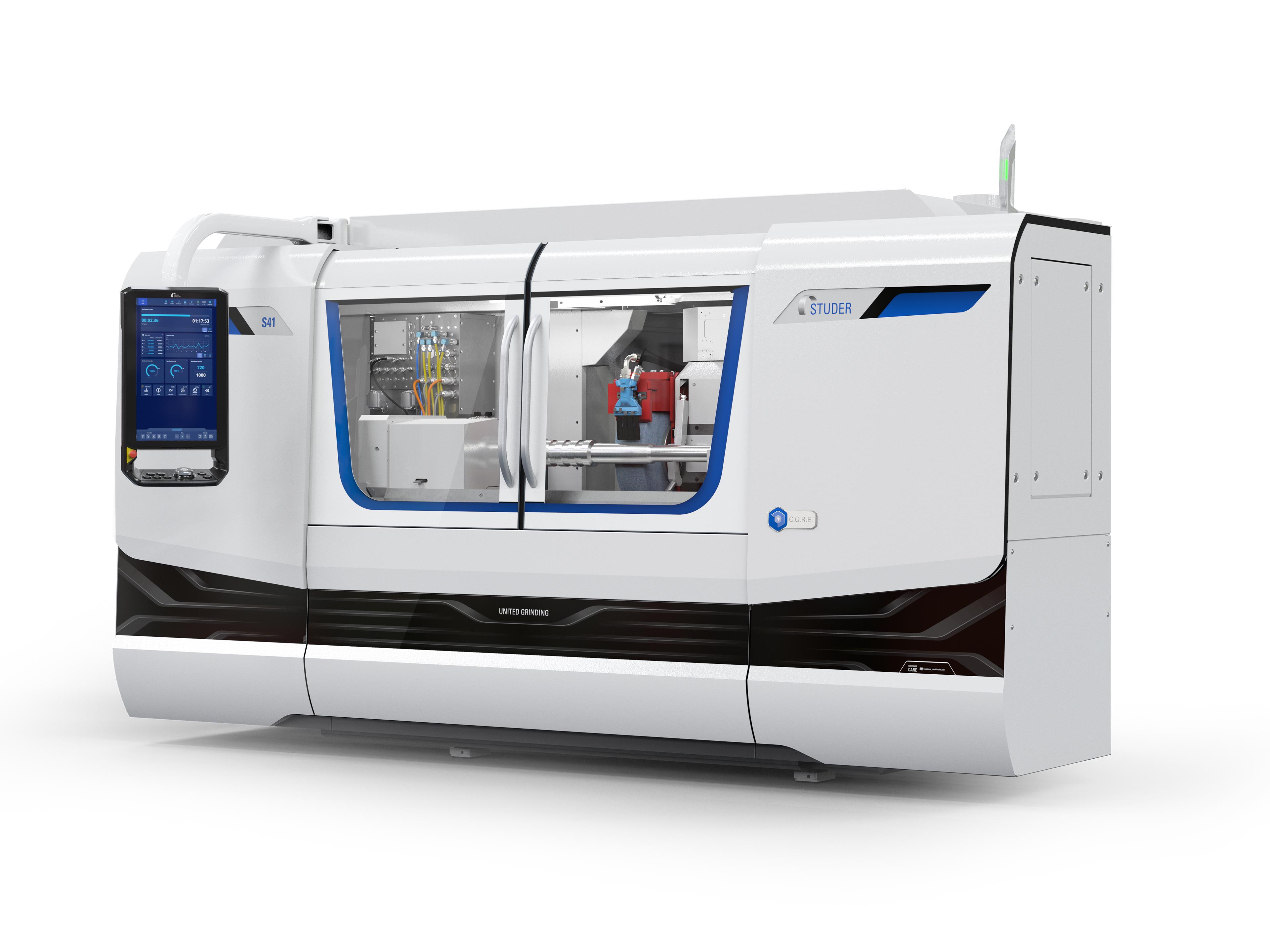

S41是一款用于大尺寸工件的数控万能内外圆磨床。其具备1000/1600mm的顶尖距和225/275的中心高。工件最大加工重量为250kg。其具备多项技术特性, 如革命性的StuderGuide®导轨系统, X/Z轴直线电机高精度直驱, B轴力矩电机超快直驱, 丰富的砂轮头架配置选项等。 The S41 is a CNC universal cylindrical grinding machine for large workpieces. It has distances between centres of 1000mm (40") / 1600mm (63") and centre heights of 225mm (8.8") / 275mm (10.8"). It can machine workpieces with a maximum weight of 250kg (550lbs). It boasts many technical features, such as the revolutionary StuderGuide® guideway system, high-precision axis drives with linear motors, extremely fast direct drive of the B-axis, an even larger selection of wheelhead variants etc.
展品详情
硬件部分：

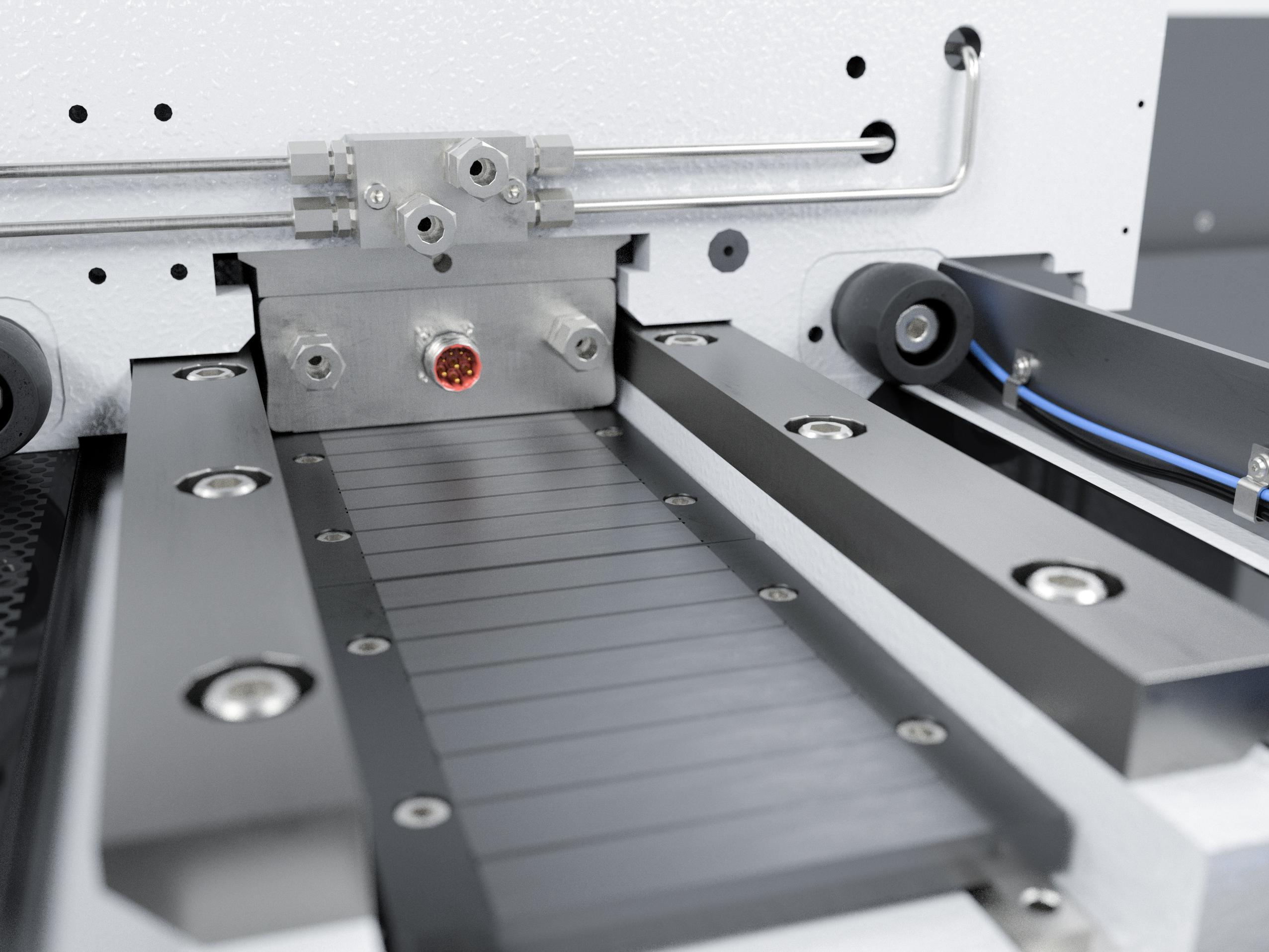

· 线性驱动StuderGuide®导轨系统

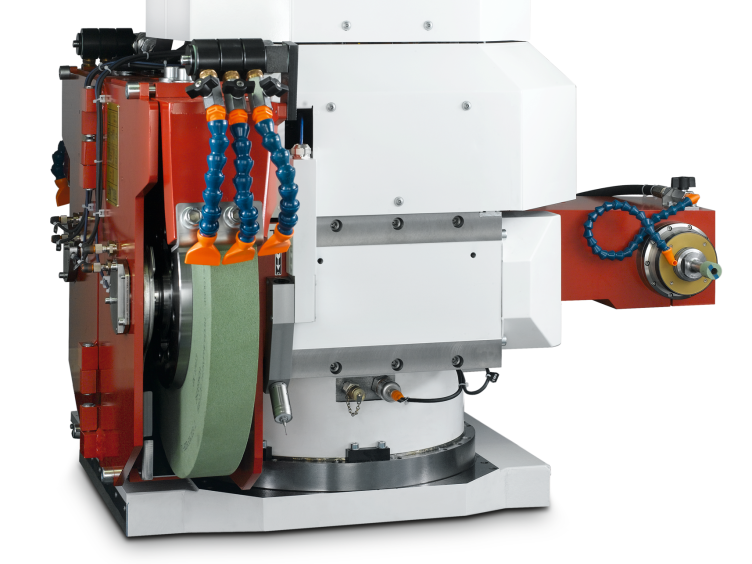

· 力矩电机直驱转塔式砂轮头架，分辨率0.00005°
· 可使用多达4个砂轮进行加工

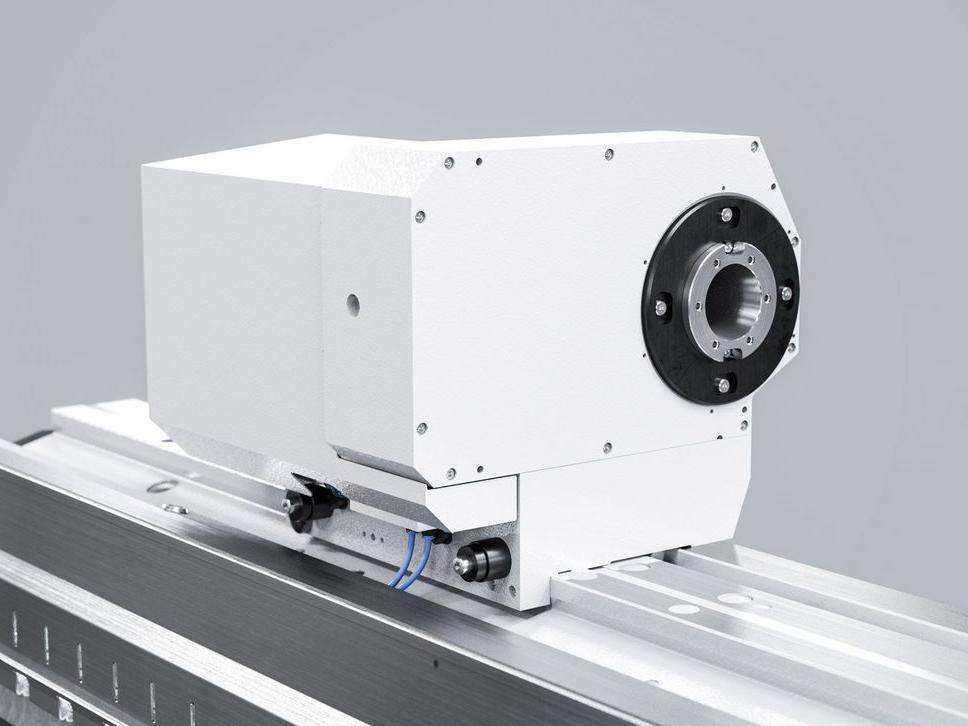

· 工件头架主轴配备C轴，可用于非圆和螺纹磨削
· C.O.R.E.面板
· 手持控制单元（PCU)可靠近磨削区域便于设置调整
· 全封闭外罩带两道滑动操作门
· Granitan®S103人造花岗岩床身
软件部分：
· C.O.R.E.操作系统
· 采用StuderWIN系统，操作和编程极为简单
· StuderTechnology专家软件自动计算磨削参数
· 使用StuderGRIND编程软件可直接在设备控制台和外部计算机上创建磨削和修整程序
· STUDER QuickSet快速对刀软件可帮助减少设置和转换时间
· 加料装置和外设均采用标准化接口
· 外部编程工作站可以实现所有软件选项在StuderWIN界面下的编程。
Hardware:
· StuderGuide® guide system with linear drive
· Turret wheelhead with direct drive and 0.00005°resolution
· Complete machining with up to four grinding wheels

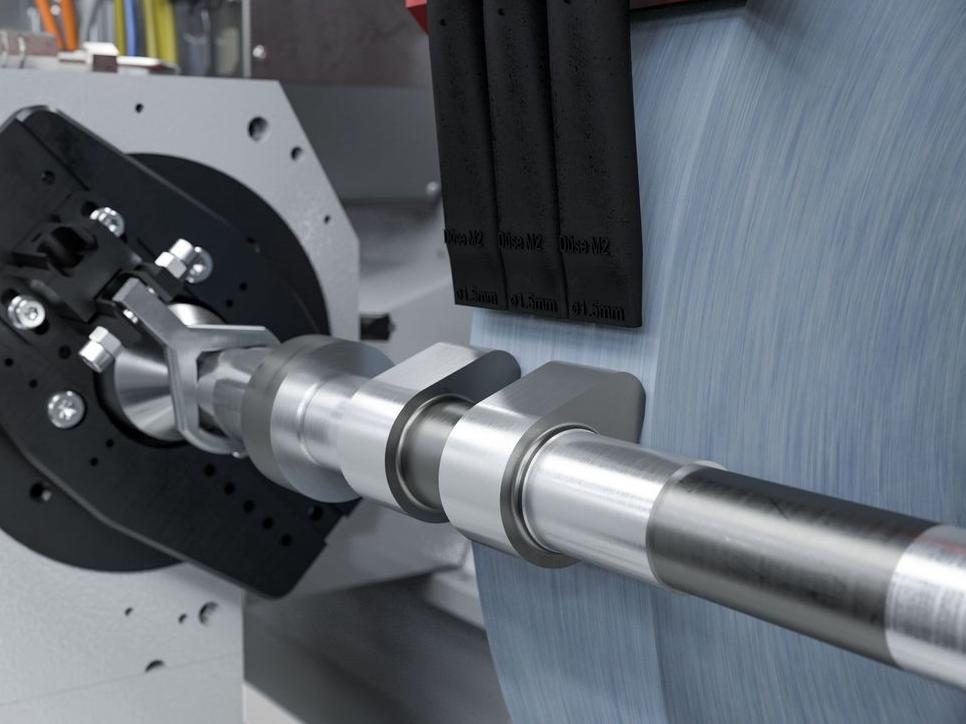

· C-axis for the workhead for form and thread grinding
· C.O.R.E. Panel
· Manual control unit (PCU) for set-up close to the grinding process
· Full enclosure with two sliding doors
· Granitan® S103 mineral casting machine base
Software:
· C.O.R.E. OS Operating system
· Very simple operation and programming thanks to StuderWIN
· StuderTechnology with integrated expertise
· StuderGRIND programming software for the creation of grinding anddressing programs directly on the machine control, or on an external PC
· Reduced setup and resetting times with STUDER QuickSet
· Standardized interfaces for loader and peripheral devices
· External programming station with all machine software options in StuderWINprogramming
