- grinding length 1000-7000 mm
磨削长度1000-7000 mm
- grinding hight 120mm
磨削高度120mm
- electromagnetic clamping table﹐155mm width, swiveling through 360°.
电磁工作台宽155mm可360°回转
- Magnetizing and demagnetizing swith.
充磁和退磁开关功能
- grinding motor 7.5 kW (10 HP) n = 1500 for clock andcounter clockwise run.
磨头功率7.5kw(10HP)n=1500, 可正反转动。
- grinding tool: ring grinding wheel, CBN wheel, diamond wheel, segments.
可用磨削工具：筒形砂轮，CBN 砂轮，金刚石砂轮，砂瓦
- automatic traversing drive of the carriage via servomotor and helical toothed rack steplessly variable from 0.02–30m/min. and 3 additional programmed carbide speeds.
磨头架自动往返采用伺服电机驱动，螺旋齿轮传动，无级变速：0.02–30m/min. 3个磨削硬质合金专用变档调速控制键，便于控制磨刀速度。
- automatic down feed via servo motor in steps of 0.005–0.2mm via potentiometer, as well as rapid up and down via servo motor.
伺服电机自动进刀，电位器调节进给量范围0.005 – 0.2 mm，而且磨头可以通过伺服电机快速上下升降。
- electromagnetic quick change device to changewheels within 10 – 15 seconds
电磁快换砂轮装置，可以10-15秒内更换砂轮
- End to end carbide feed and spark out counter
硬质合金专用端对端进刀模式，确保磨刀质量，且可设定光磨次数，实现无人看守
- coolant supply through the hollow spindle and outside the grinding tool.
切削液通过磨头中空主轴和砂轮外侧双重喷射
- replaceable guideway bands.
导轨带可更换，能确保导轨带磨损后精度不受影响
- Anti-lift rollers
防跳轴承系统，防止进刀值过大时不跳刀
- coolant tank with coolant pump cleaning pump.
切削液箱配置打水泵和清洗泵
- Lift up front stop and notched back stop for easy
alignment of knives.
装刀时，后端校准前端定位，便于刀片定位校准

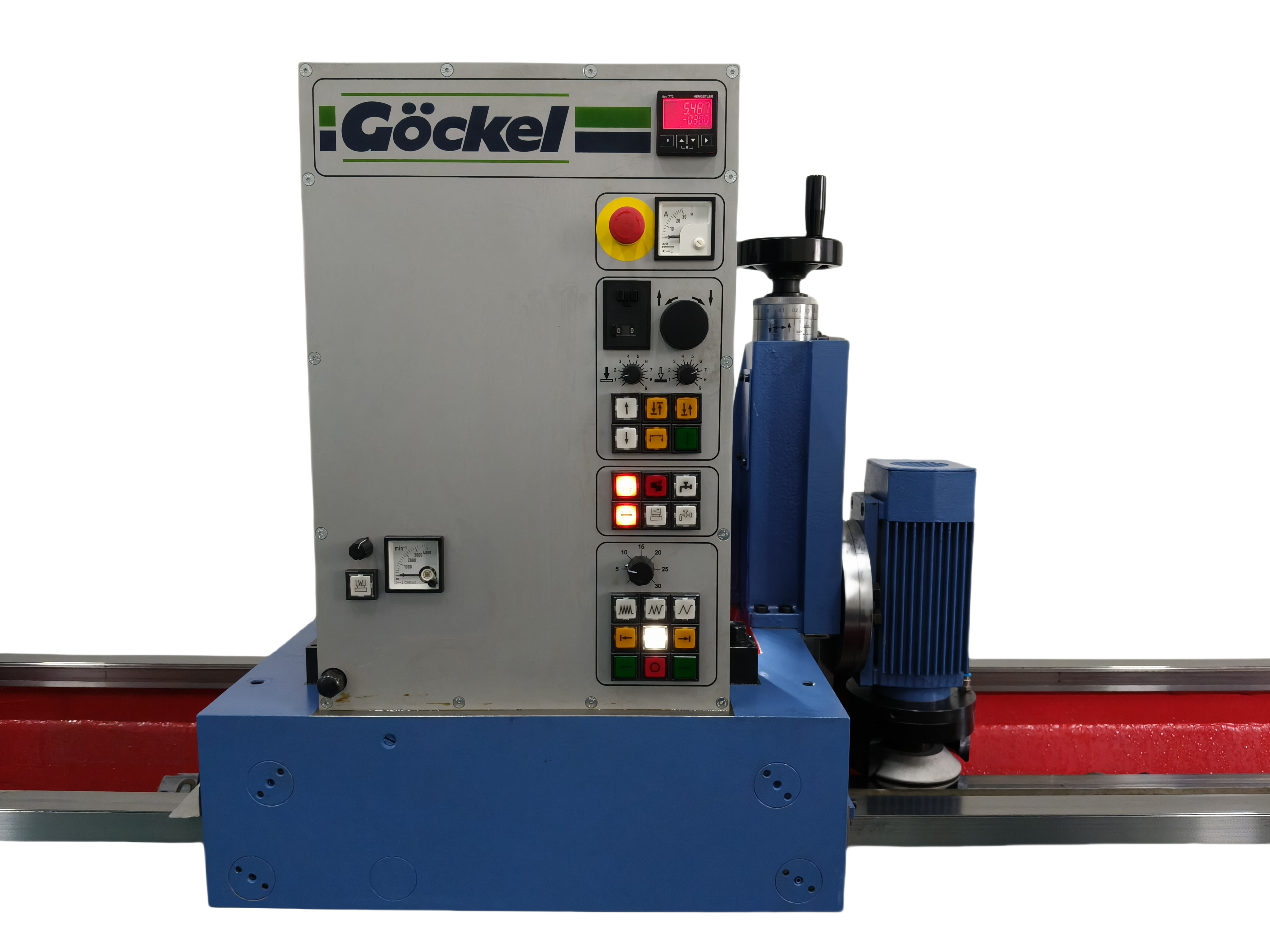

- Digital display and electronic hand wheel for down-feed
数显及电子手轮进刀
- flanges法兰盘:
1 flange and 1 wheel 200 mm Æ.
1个筒形砂轮法兰和一个陶瓷砂轮
- installed for 400 v,50 CYCLES.
安装电压400V, 50 CYCLES
- grinding tolerance 0.005mm/m
磨削直线度0.005mm/m
