展品详情

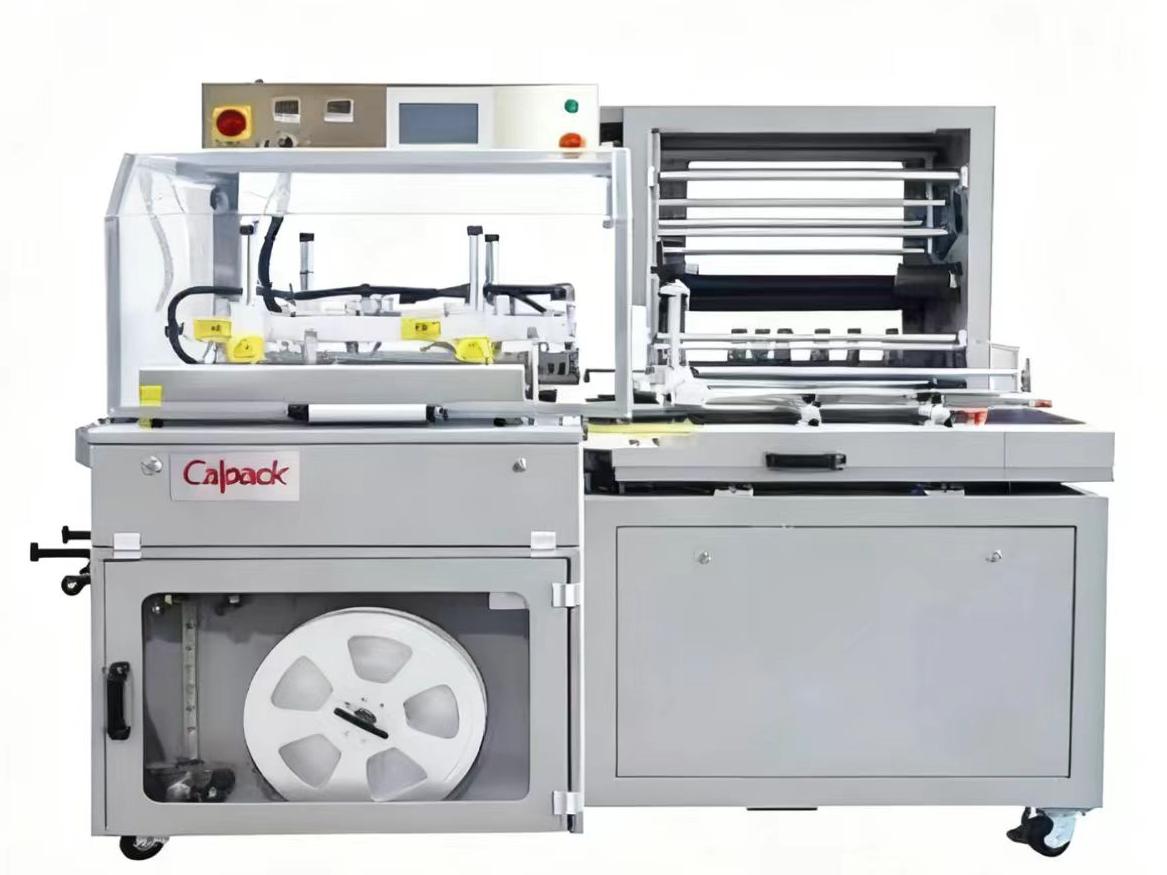

CALPACK350+CT150 垂直式全自动封口机+可视型收缩炉
Automatic Vertical Seal Type Machine+Shrink Tunnel
技术参数/Technical Data | |
型号 | CALPACK350 |
封口尺寸 | 630x450mm |
最大包装尺寸 | (100-550)x(60-400)x(5-180)mm |
最小产品长度 | 标准型Standard Type:100mm |
电源 | 1⌀220V,50Hz |
总功率 | 3kw |
气 压 | 8kg |
机器尺寸 | 1910x1100x1680mm |
机器特点 MACHINE FEATURES
采用整体式钢刀，封口更牢固。
Using the integral steel knife,making the seal is fastness
PLC电脑程序控制器，电眼侦测系统，安全保护装置
PLC controller,photo sensor detection system,safety
protection device for sealing knife
垂直封口设计，封口动作稳定性好，耐用性高，封口线
结实、美观
Vertical sealing design,good stability for sealing,high
durability,the sealing line is strong and beautiful
机器采用简易调整式打孔针轮，方便调节
The machine adopts simple adjustable punching pin
wheel,easy adjustment
机器采用7寸彩色触摸屏操作界面
The machine 7inch touch screen with color
operation interface
整机性能稳定，操作简便，低故障率，高生产效率
Performance stability,easy to operate,lower failure rate,
high production efficiency
封切刀高低和封口线可以调整，包装更顺畅，更美观
Height of sealing knife and sealing line can be adjusted,
making the packaging is more smooth and beautiful
304不锈钢版本同步供应
304#stainless steel version is available

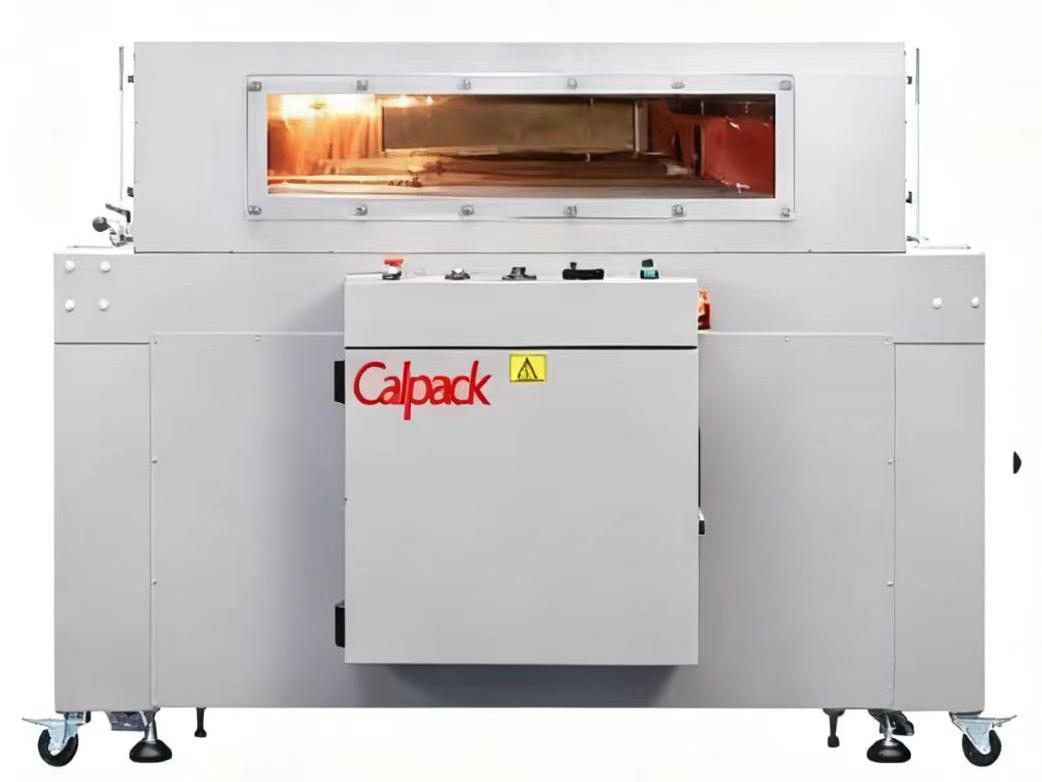

技术参数/Technical Data | |
型号 | CT150 |
发热区尺寸 | 1500x500x300mm (LxWxH) |
输送带速度 Conveyor Speed | 0-30m/min |
产品最小长度 Min product Length | 60 mm |
电源 | 3⌀380V |
功率 | 15kw |
收缩炉温度 Tunnel Temperature | 0~200℃ |
机器尺寸 | 1800x1020x1250mm |
机器特点 MACHINE FEATURES
适用于POF、PVC等收缩膜
Able to run POF、PVC and several type of shrink film
下风循环风机系统设计，内胆为不锈钢镜面材质，可视窗设计
The downwind air is circulating fan design,Visible turnel
design
风力及热量在炉内循环，大大节省了热能，加热快
The wind and heat are circulating in the furnace,which
greatly saves heat energy,and heats fast
风力大小，方向和输送速度都可以调节，收缩效果更完美
Power and direction of wind,and speed of delivery can be
adjusted,the shrink effect is more perfect
操作简单，温度自动控制，温度可控制在正负1度以内
Easy to operate,the temperature is controlled automatically,
the temperature can be controlled within±1 ℃
采用优质保温棉，双层隔热，最大限度降低能耗
Using high quality cotton insulation,double the
septum,minimizing energy consumption
304不锈钢版本同步供应
304#stainless steel version is available
