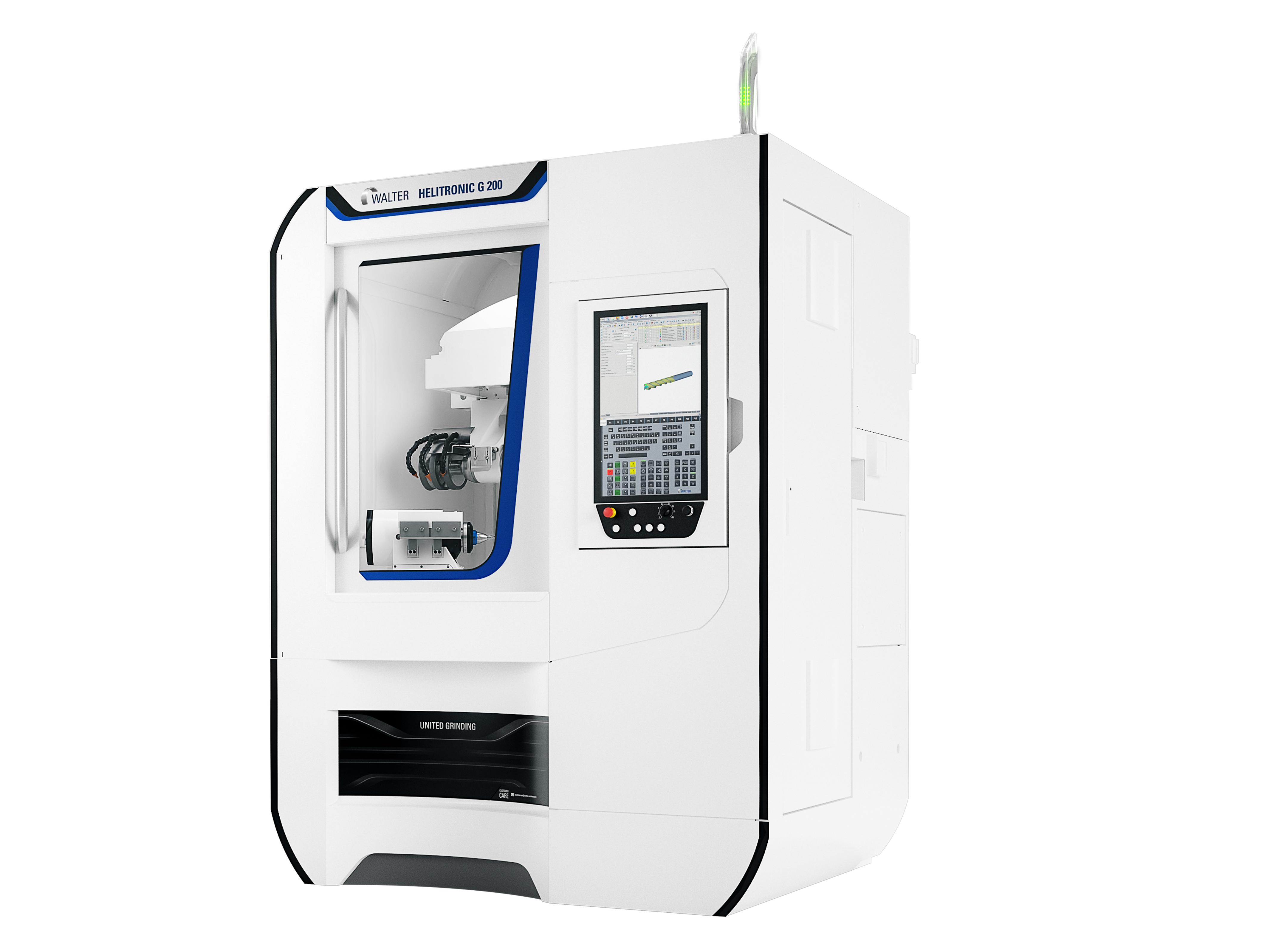

瓦尔特 HELITRONIC G 200
展商：United Grinding Group Management AG
原产国/地区：德国
HELITRONIC G 200 以其磨削质量和不足2.3平米的占地面积使人印象深刻。它是空间有限时的理想机床选择。适用于生产和重磨直径范围从 1 到 125 mm 的旋转对称刀具。可加工长度最大 235 mm、单件重量不超过 12 kg 的刀具。HELITRONIC G 200能在一次装夹的情况下完成对用于金属和木材行业的中小直径刀具的磨削和重磨，而且所需的占地面积很小。 The HELITRONIC G 200 tool grinding machine impresses with an innovative machine concept with a footprint of less than 2,3 sqm. The machine offers tool grinding at its best: Production and re-sharpening of rotationally symmetrical tools in the diameter range of 1 to 125 mm, with a maximum tool length of 235 mm and a tool weight up to 12 kg. HELITRONIC G 200 can complete the grinding and regrinding of small and medium-sized diameter cutting tools used in the metal and wood industries in one clamping process, and the required footprint is very small.
展品详情
C型支架结构
矿物铸件制成的支架结构具有很高的自重和刚性，可使数字化驱动装置的高动力在极小的振动下转化为磨削精度。
皮带驱动主轴
具有两个主轴端的皮带驱动主轴最多可装备六片砂轮。不同的砂轮组以及所有数据和主轴端一一对应。
“顶置装载机” 选项
这一全新自动化解决方案直接集成于加工区，它节约空间且性价比高。自动示教可提供较短的设置时间。根据刀具直径，顶置装载机最多可装载500把刀具。
C-frame construction
The C-frame construction and the mineral cast bed with its high weight and extreme rigidity converts the high dynamic performance of the digital drives into low-vibration grinding precision.
Belt-driven spindle
The belt-driven spindle with two ends can take up to six grinding wheels. The different grinding wheel sets are allocated to the relevant spindle along with the wheel measurement data.
"Top loader" option
This space-saving and inexpensive automation solution is integrated directly into the machine envelope. Featuring an automatic teaching capability setup times are reduced to a minimum. Depending on the tool diameter, the Top loader offers a maximum of 500 places for tools.
