斯图特 S33
展商：United Grinding Group Management AG
原产国/地区：瑞士

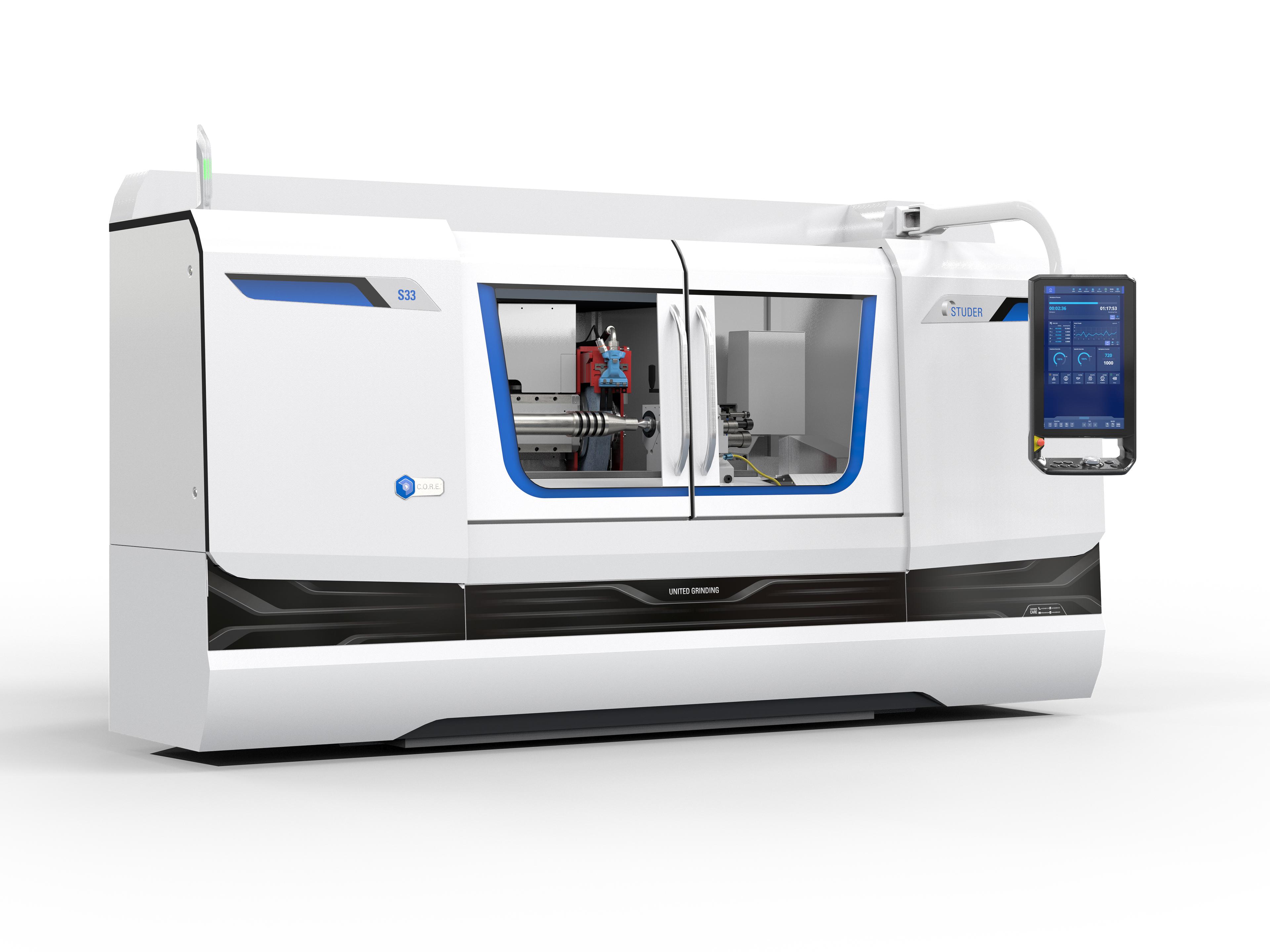

S33 是一款适用于小尺寸到大尺寸工件的数控万能内外圆磨床，同时支持单件加工，小批量和大批量生产。其具备400/650/1000/1600mm的顶尖距和175mm的中心高。工件最大加工重量为150kg。其可在极短时间内从双顶尖装夹磨削转换为活主轴磨削。即使是复杂工件也只需一次夹紧即可加工：这可通过新设计多工位磨削实现。机床床身采用坚固的Granitan®S103人造花岗岩材质。 The S33 is a CNC universal cylindrical grinding machine for the individual and batch production of medium-sized workpieces. It has a distance between centres of 400mm (15.7") / 650mm (25.6") / 1,000mm (40") / 1,600mm (63") and a centre height of 175mm (6.9"). It can machine workpieces with a maximum weight of 150kg (330lbs). Changing over from grinding between centres to live spindle grinding is particularly easy on this machine. The new wheelhead with two motor spindles enables grinding of even more complex workpiece geometries in a single clamping. Its foundation is a machine base made of solid Granitan® S103.
展品详情
硬件部分：
· 可定制砂轮主轴：
- 转塔式砂轮头架可选配最多2个外圆, 1个内圆磨削主轴。 可以1°分度自动回转
- 固定式砂轮头架可选装右置砂轮，角度：0° / 15° / 30°
· 变频器控制的磨削电主轴，适用于转塔式砂轮头架用于内外圆磨削
· 工件头架主轴配备C轴，可用于非圆和螺纹磨削
· 工作台集成双T型槽，可用于修整设备
· C.O.R.E.面板
· 手持控制单元（PCU)可靠近磨削区域便于设置调整
· 全封闭外罩带两道滑动操作门
· Granitan®S103人造花岗岩床身
软件部分：
· C.O.R.E. OS 操作系统
· 采用StuderPictogramming图标编程，编程简单方便
· STUDER Quick-Set快速对刀软件可帮助减少设置和转换时间
· 加料装置和外设均采用标准化接口
· 集成软件模块，可灵活进行扩展
· 提供StuderWINprogramming软件（可选），支持在外部计算机上创建磨削和修整程序
Hardware:
· Wheelhead versions:
- Turret wheelhead with up to 2 external grinding spindles and 1 internal grinding spindle. Automatic swivel with 1° Hirth serration.
- External wheelhead with grinding wheel right, 0° / 15° / 30°
· Frequency-controlled motor grinding spindles for external and internal grinding
· C-axis for the workhead, enabling form and thread grinding

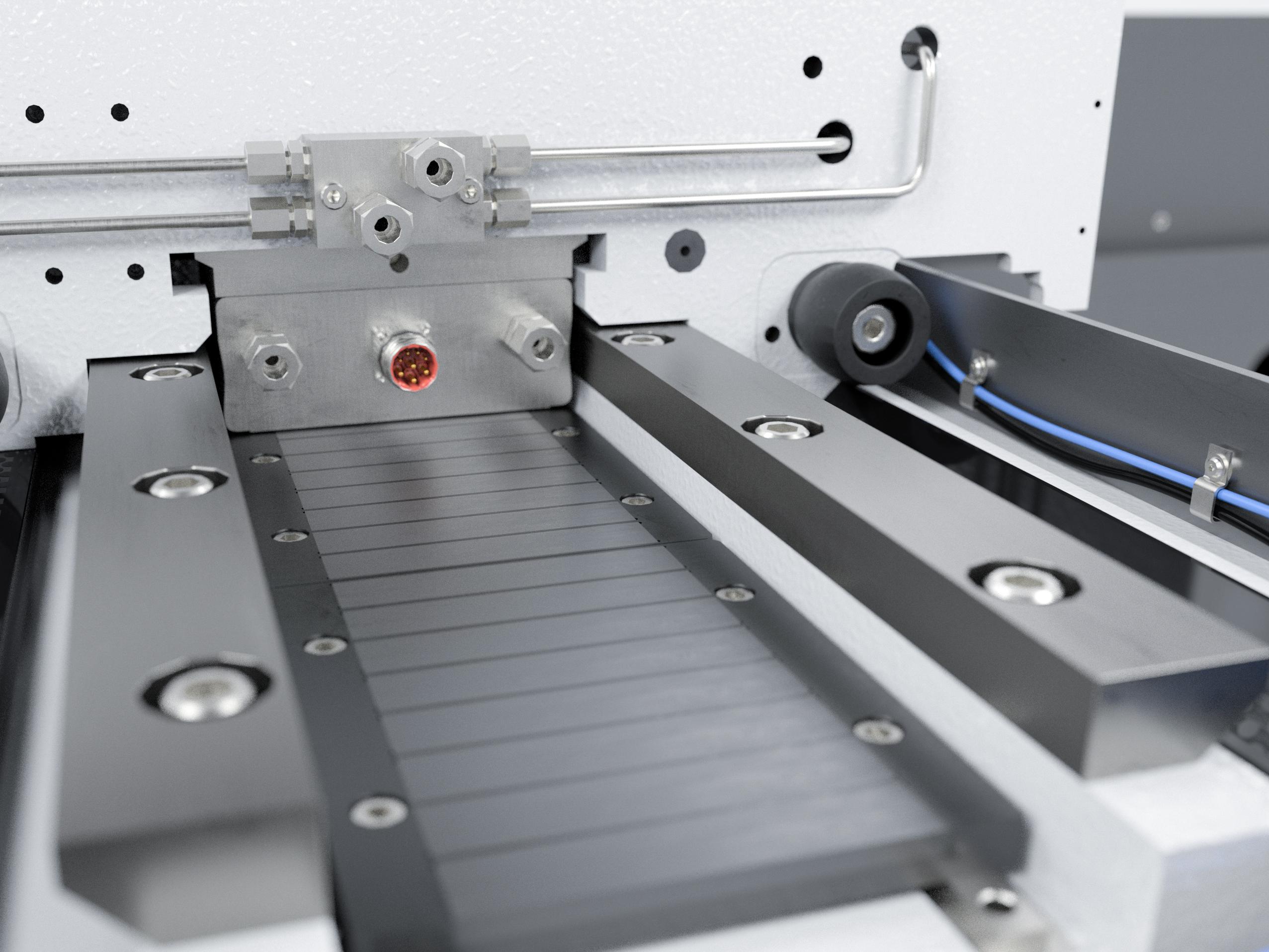

· Worktable with integrated double T-slot for dressing devices
· C.O.R.E. Panel
· Portable control unit (PCU) for setting up close to the grinding process
· Full enclosure with two sliding doors
· Granitan® S103 mineral-casting machine base
Software:
· C.O.R.E. OS operating system
· Extremely easy programming with StuderPictogramming
· Reduced setup and resetting times with STUDER Quick-Set
· Standardized interfaces for loader and peripheral devices
· Flexibly expandable with integrated software modules
StuderWIN programming software (optional) for creating grinding and dressing programs on an external PC
