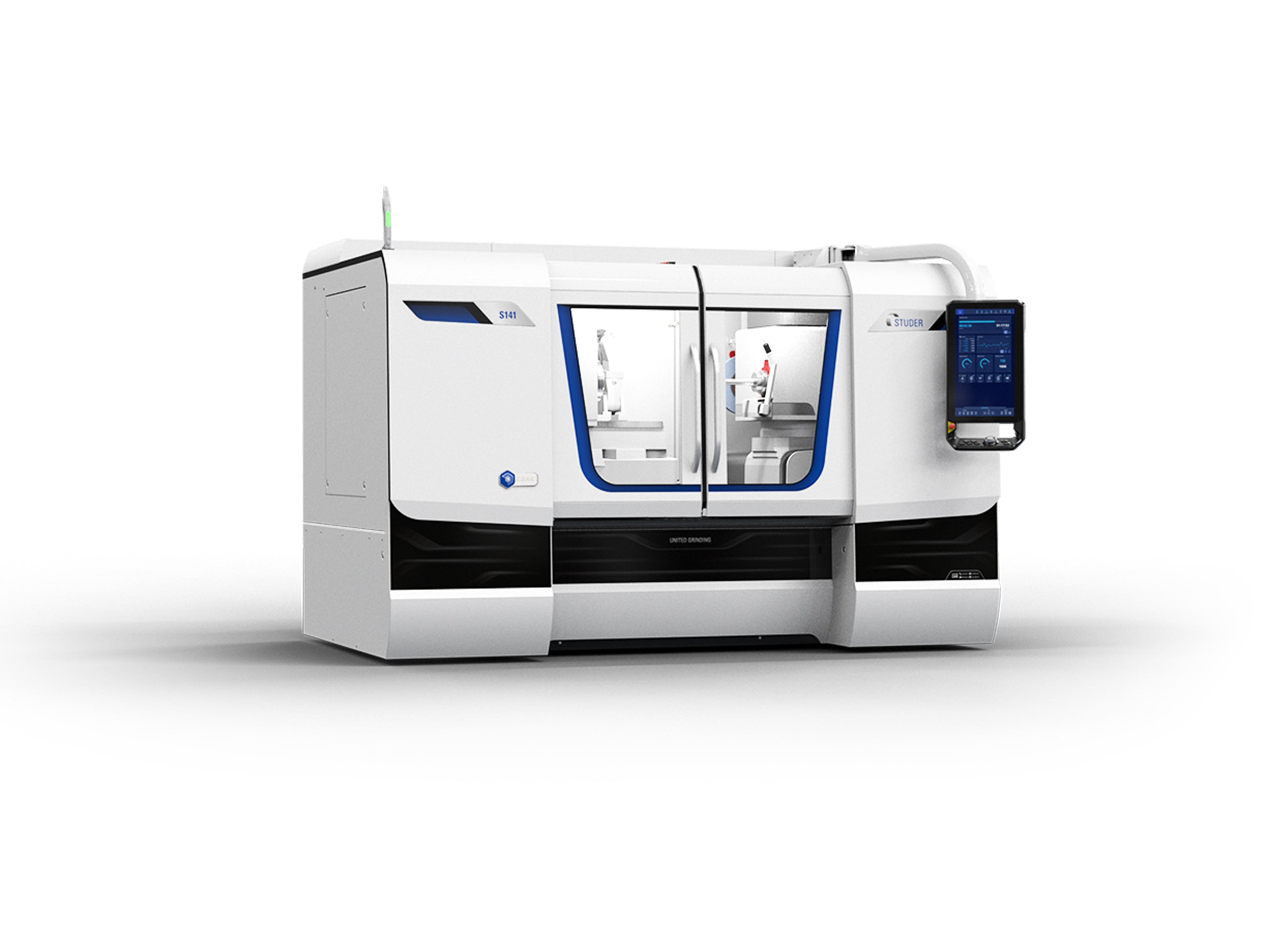

斯图特 S141
展商：United Grinding Group Management AG
原产国/地区：瑞士
S141是新一代的数控万能型内圆磨床。其支持3种工件长度尺寸, 包括300 mm, 700 mm或1300mm，多种夹具可供选用。所有型号最大磨削深度为内圆250mm, 外圆磨削长度150mm。S141是磨削主轴、主轴外壳、转轴或法兰零件的理想加工设备。很多工件涉及机床、 传动元件、航空航天和工具制造等领域。 The S141 is a CNC universal internal cylindrical grinding machine of the latest generation. Three sizes are available for workpiece lengths (including clamping devices) of 300mm (11.8"), 700mm (27.5") and 1300mm (51.2"). For all models the maximum grinding length is 250mm (9.8") for internal and 150mm (5.9") for external diameters. The S141 is the ideal machine for grinding spindle shafts, spindle housings, rotor shaft axes or flange parts. Many workpieces are to be found in the areas of machine tools, drive elements, aerospace and tooling.
展品详情
硬件部分：
· 线性驱动StuderGuide®导轨系统
· 主轴转塔可加装多达4支磨削主轴
· 自动回转工作台
· C.O.R.E. 面板
· 工件头架主轴配备C轴，可用于成型和螺纹磨削
· 全封闭外罩带两道滑动门
· Granitan®S103人造花岗石材质床身
软件部分：
· C.O.R.E.操作系统
· 采用StuderWIN系统，操作和编程极为简单
· STUDER Quick-Set帮助减少设置和重置时间
· 加料装置和外设均采用标准化接口
Hardware:
· StuderGuide® guideway system with linear drive
· Grinding spindle turret with up to four grinding spindles
· Automatically swiveling workpiece table
· C.O.R.E. Panel
· C-axis for workhead spindle for form and thread grinding
· Full enclosure with two sliding doors
· Granitan® S103 mineral casting machine base
Software:
· C.O.R.E. OS operating system
· Very simple operation and programming thanks to StuderWIN
· Short setup and resetting times e.g. with STUDER Quick-Set
· Standardized interfaces for loader and peripheral devices
