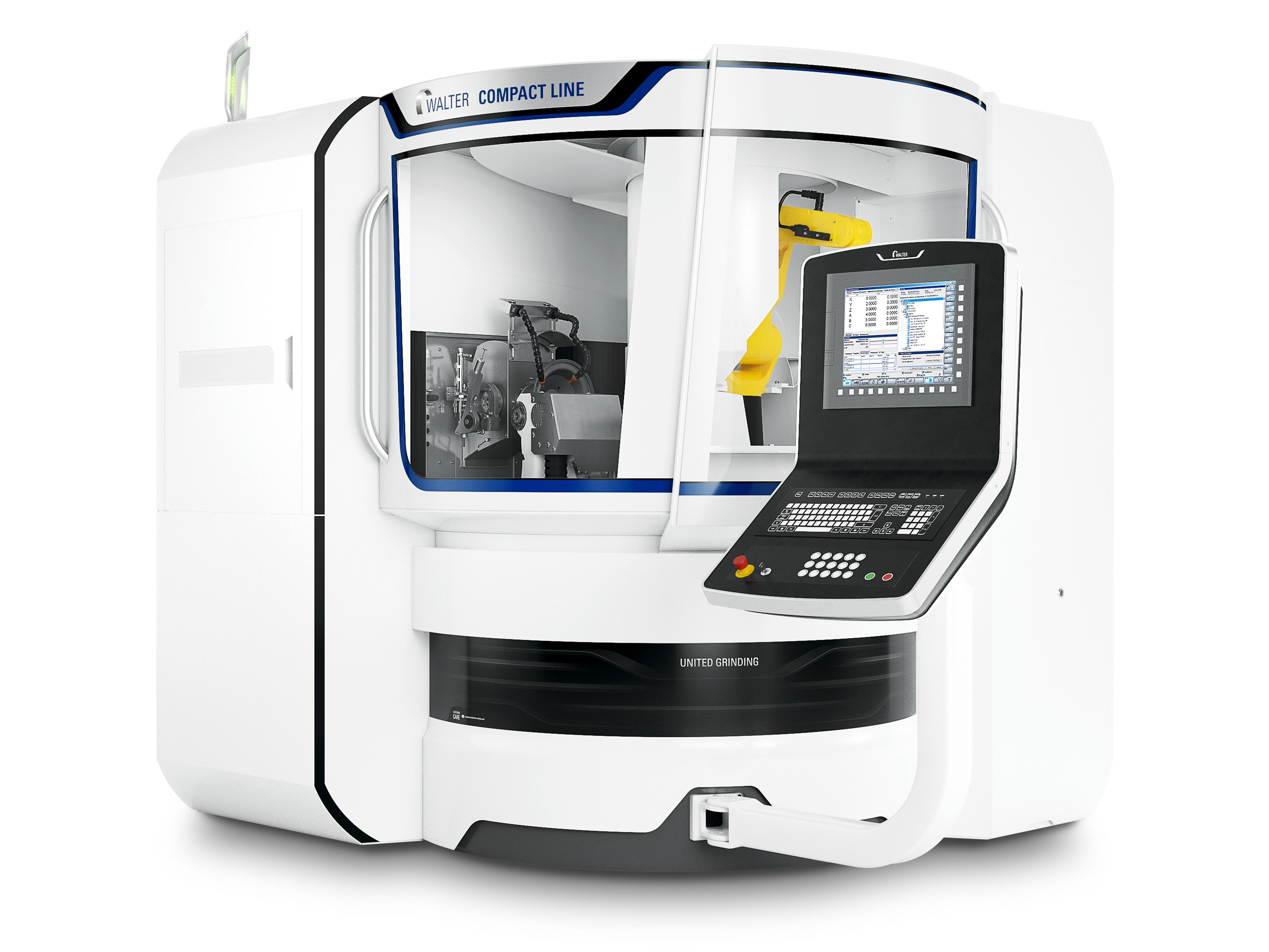

瓦尔特 COMPACT LINE
展商：United Grinding Group Management AG
原产国/地区：德国
COMPACT LINE数控刀片磨床配备6根数控轴。可用于槽刀片、铣刀刀片、车刀刀片和成型刀片等可转位刀片的加工生产。这款机床可以选用多种装夹系统，通过即插即用接口就能将其与机床对接，这样在选择刀具类型、刀位顺序以及批量大小方面就有非常高的自由度。换装时间极短，即使是很小的批量，也能以最经济的方式完成生产。 The COMPACT LINE CNC tool grinder has six CNC axes. The tool grinding machine is used for the production of indexable inserts, including burring, milling, lathing and profile plates. A variety of clamping systems, docked to the machine via a plug & play interface, offer complete freedom in the choice of tools, sequence and lot size. Thanks to extremely low set-up times, very small batches can also be produced economically.
展品详情
机械结构
低振动的灰铸铁机座具有非常好的缓冲性能, 确保了优秀的表面加工效果。
运动机构
紧凑的6轴运动机构，在加工坐标轴B轴周围实现了短行程插值，并可减少非生产时间。
扭矩驱动
旋转轴B和C中的直线电机或扭矩电机直接驱动器可确保所有相关机轴的高动力性能和长期稳定性。
夹紧系统
夹紧系统以相同的方式安装在B轴上，并通过即插即用系统进行识别。
Mechanical layout
Vibration-absorbing cast machine base with very good damping properties for optimal tool surfaces.
Kinematics
A compact 6-axis motion range delivers short interpolation paths along the B processing axis, cutting auxilary times.
Torque drive
Linear motors and torque drives on the B & C axis provide strong dynamic performance and long-term stability along all relevant axes.
Workholding
The clamping systems are mounted on the B axis and identified by a plug & play system.
