斯图特 S131
展商：United Grinding Group Management AG
原产国/地区：瑞士

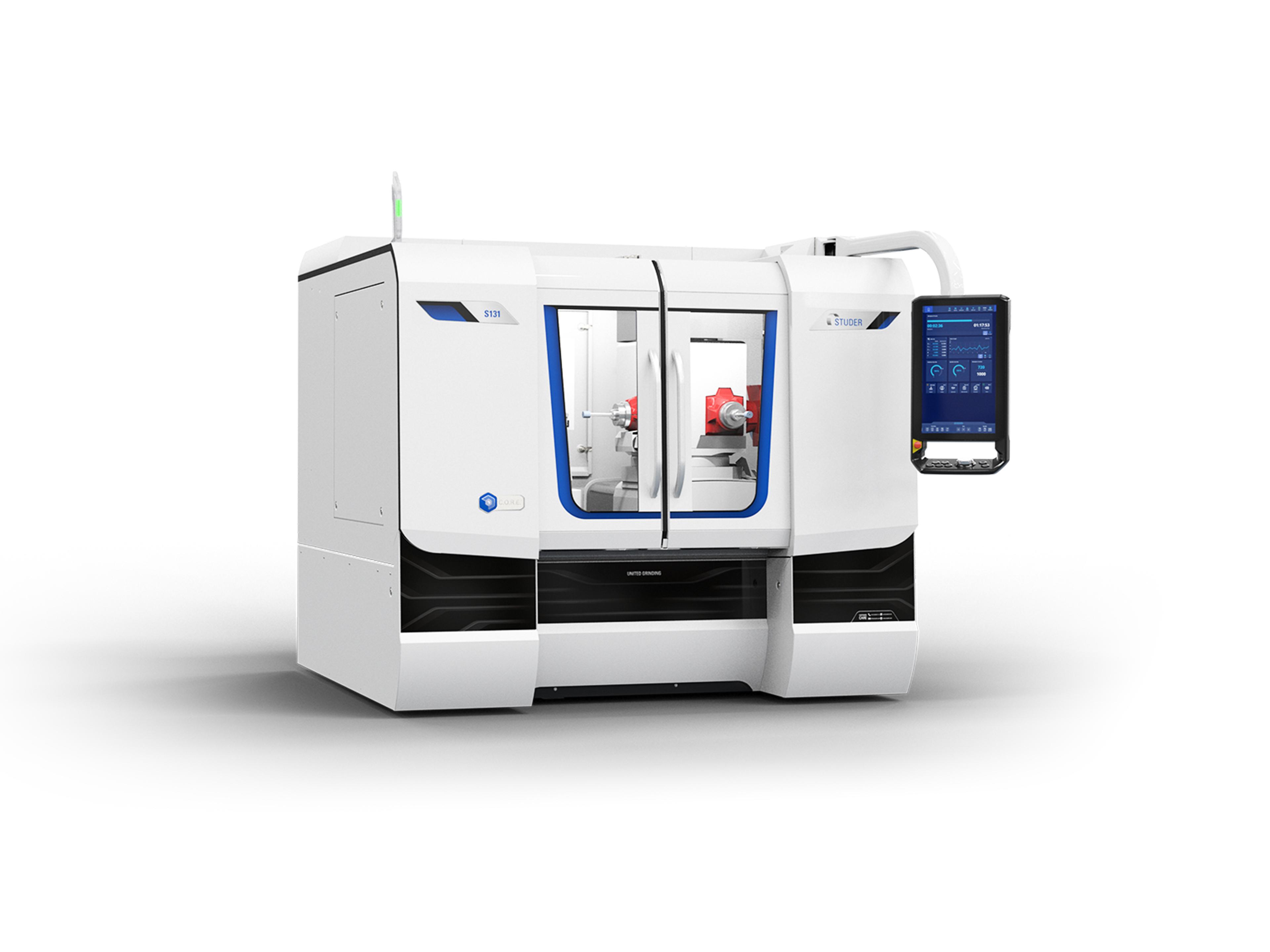

S131是新一代的数控万能内圆磨床。工件台上方的回转直径为250mm, 最大允许工件长度（包括夹具）为 300 mm。该款紧凑型设备对磨削法兰零件和各种较小尺寸工件具有出色性能。其具备多项技术革新, 如创新性的StuderGuide®导轨系统, X/Z轴直线电机高精度直驱, 超快砂轮转塔B轴直驱, 自动回转工件台等。 The S131 is a CNC universal internal cylindrical grinding machine of the latest generation. The swing diameter above the workpiece table is 250 mm (9.8"), and the maximum workpiece length (including clamping device) is 300 mm (11.8").The compact machine shows its strength with flange parts and smaller workpieces of all types. It has a host of sophisticated technical features such as the revolutionary StuderGuide® guideway system, high-precision axis drives with linear motors, extremely fast direct drive of the grinding spindle turret, automatic swiveling of the workpiece table etc.
展品详情
硬件部分：
· 线性驱动StuderGuide®导轨系统

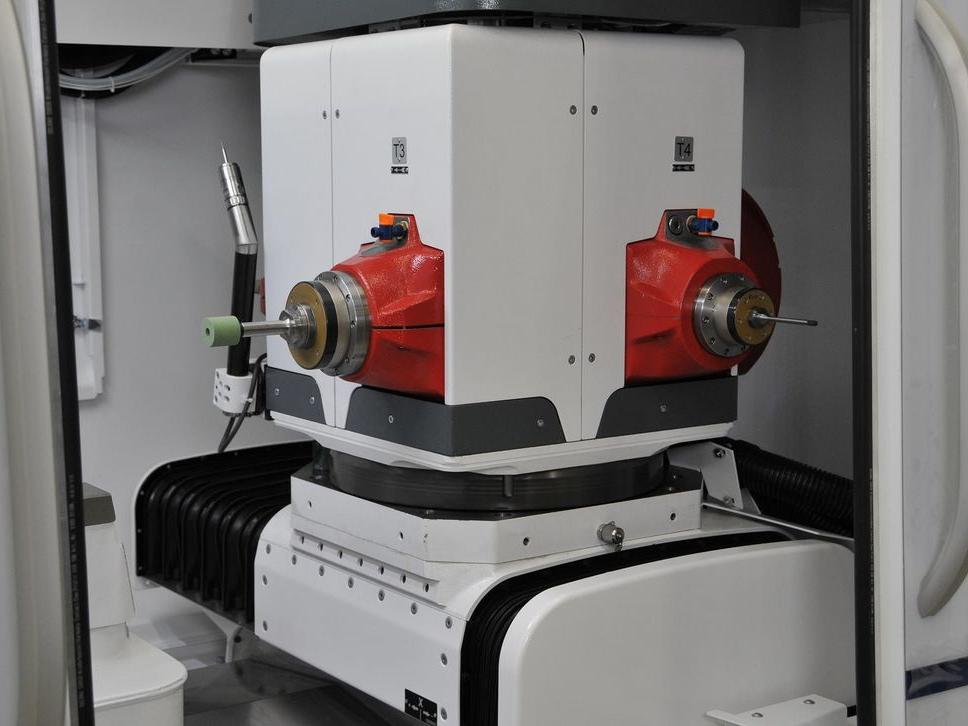

· 砂轮转塔可加装多达4支磨削主轴
· 自动回转工作台
· 工件头架主轴配备C轴，可用于非圆和螺纹磨削
· 全封闭外罩带两道滑动门

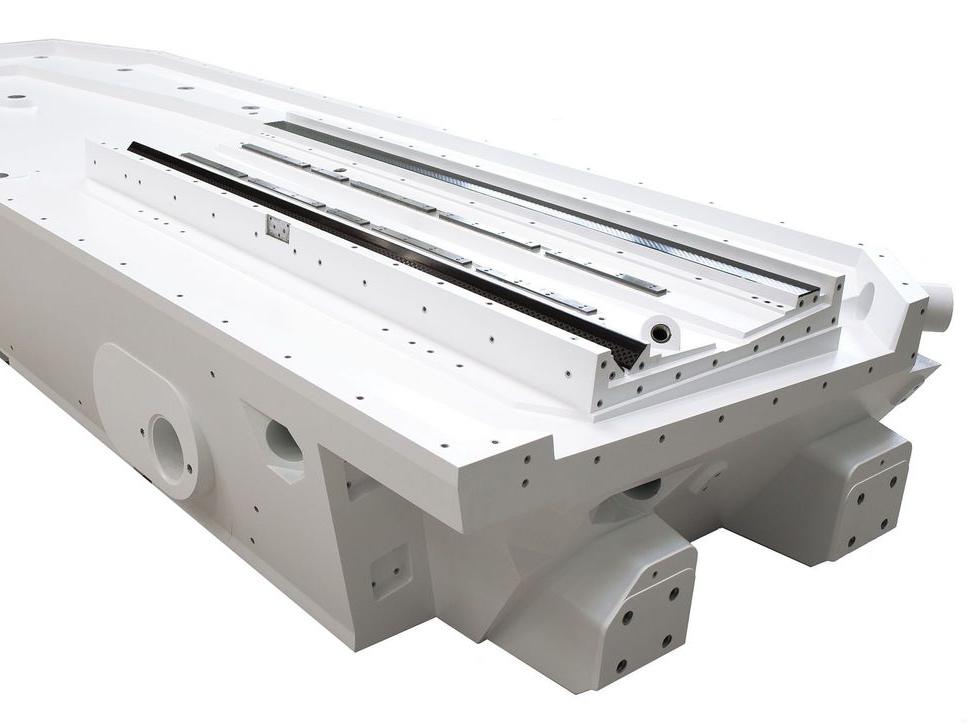

· Granitan®S103人造花岗岩床身
软件部分：
· 采用StuderWIN系统，操作和编程极为简单
· STUDER Quick-Set快速对刀软件帮助减少设置和重置时间
· 加料装置和外设均采用标准化接口
Hardware:
· StuderGuide® guide system with linear drive
· Grinding spindle turret with up to four grinding spindles
· Automatically swiveling workpiece table
· C-axis for workhead spindle for form and thread grinding
· Full enclosure with two sliding doors
· Granitan® S103 mineral casting machine base
Software:
· Very simple operation and programming thanks to StuderWIN
· Short setup and resetting times e.g. with STUDER Quick-Set
· Standardized interfaces for loader and peripheral devices
