SE-FMS

展商：S.A. ARMSTRONG LIMITED

原产国/地区：加拿大

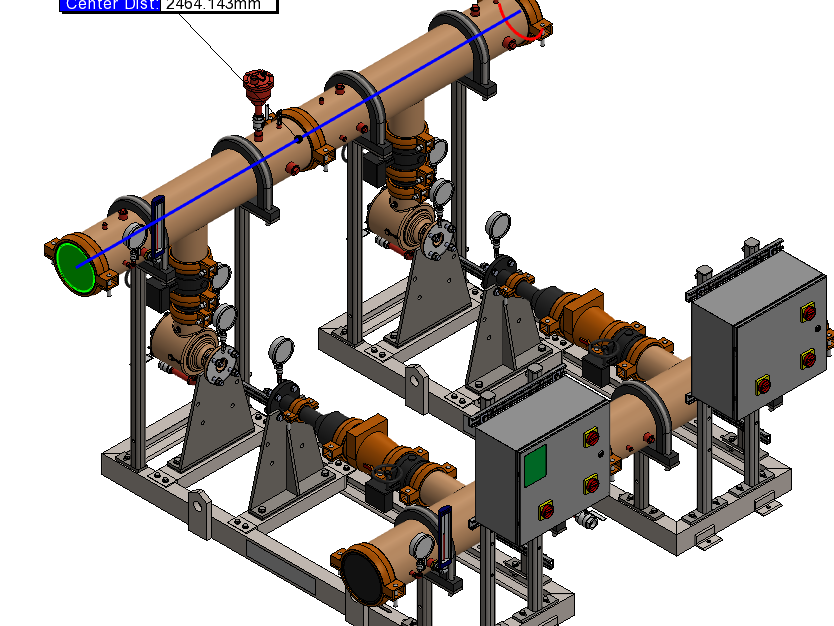

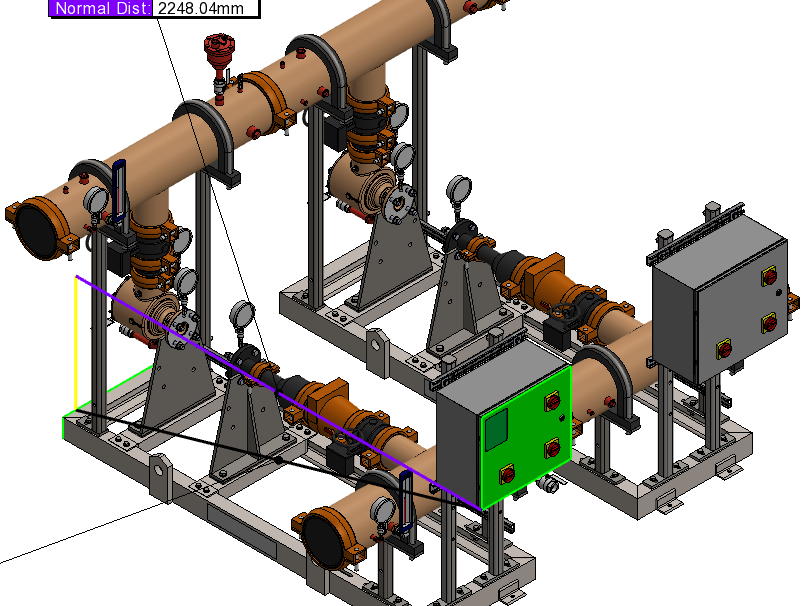

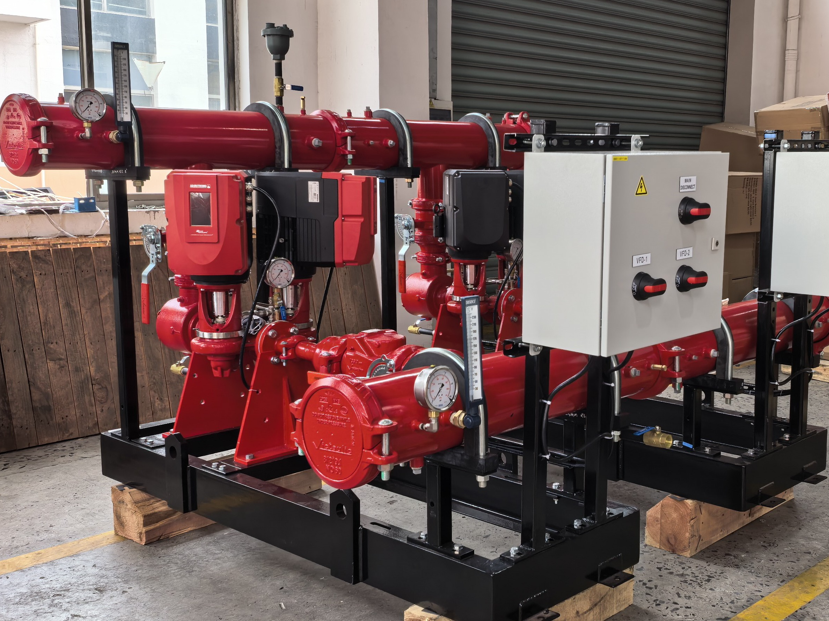

系统围护流体管理站（SE-FMS）是一种工厂预组装的模块化泵控系统，整体集成在单个紧凑单元内。 SE-FMS 作为阿姆斯特朗**围护生态系统**的组成部分，通过围护核心平台实现联网。该设备融合机械可靠性与数字化智能能力，支持性能监测、数据驱动优化以及全生命周期状态可视。 不同于传统零散设备或定制工程橇装设备，SE-FMS 依托阿姆斯特朗性能图谱划定经过验证的性能工作区间，保障设计结果可预期、系统集成简化，并实现长期高效运行。 标准化设计与集成优势： - 缩短交付周期，降低工程复杂度 - 单点供电、即插即用布线，简化安装工作 - 借助 Wrench 应用程序，实现快速开机与调试 - 通过围护核心平台与数字化监管，保障长期优化运行 - 助力减碳：相较传统成套装置，隐含碳最高可降低 50%，能耗最高节省 30%

预约 仅加入行程

同类型展品

展品详情

  • Materials

    Carbon steel frame with durable powder-coated finish
    Grooved-end Schedule Standard carbon steel piping
    ANSI Class 150 full-port isolation valves
    UL-listed NEMA 12 painted-steel power and control panels

  • Configuration

    Available in Simplex, Duplex, and Triplex modular assemblies
    Modular design for scalable capacity
    Equipped with Design Envelope Tango Vertical In-Line pumps for built-in redundancy
    Integrated Armstrong DEPC or SE-F10.1 control for optimized redundancy and staging
    combines pumps, Suction Guides, valves, integrated controls (DEPC or SE-F10.1), and power distribution panels
    All configurations share the same:
    Factory-assembled, pre-piped, pre-wired construction
    Plug-and-play installation with single-point power
    Wrench App for commissioning and Envelope Core
    All assemblies are factory-wired, pressure-tested, and quality-verified prior to shipment



  • Performance range

    Flow: up to 5,000 US gpm (≈ 1,350 m³/h)
    Head: up to 200 ft (≈ 61 m)
    Motor sizes: 10–80 HP per module, scalable up to 240 HP in triplex configuration
    Performance Envelope: each unit ships with a pre-defined, recommended operating envelope for predictable and optimized performance.

  • Temperature

    Fluid operating range: 5 °C to 95 °C (41 °F to 200 °F)

  • Power Range

    Per pump: 10 HP (2 × 5 HP) to 80 HP (2 × 40 HP)
    Power ranges for available configurations:
    Simplex: up to 80 HP
    Duplex: up to 160 HP total
    Triplex: up to 240 HP total
    Voltage options:
    575V
    460/480V
    208/230V (available only for Tango models up to 20 HP [2 × 10 HP])



  • Size

    Piping connection sizes: 6” to 14” suction and discharge
    Footprint: compact modular design with ~30-60% smaller vs. traditional systems, and configurable for mechanical room constraints
