Technical Data:技术参数
Workpiece Diameter, max.工件直径 300(最大直径500) mm
工件最大直径空间 620 mm
Grinding Accuracy磨削精度 ± 0.005 mm
Grinding positioning Accuracy 0,001 mm
磨削定位精度

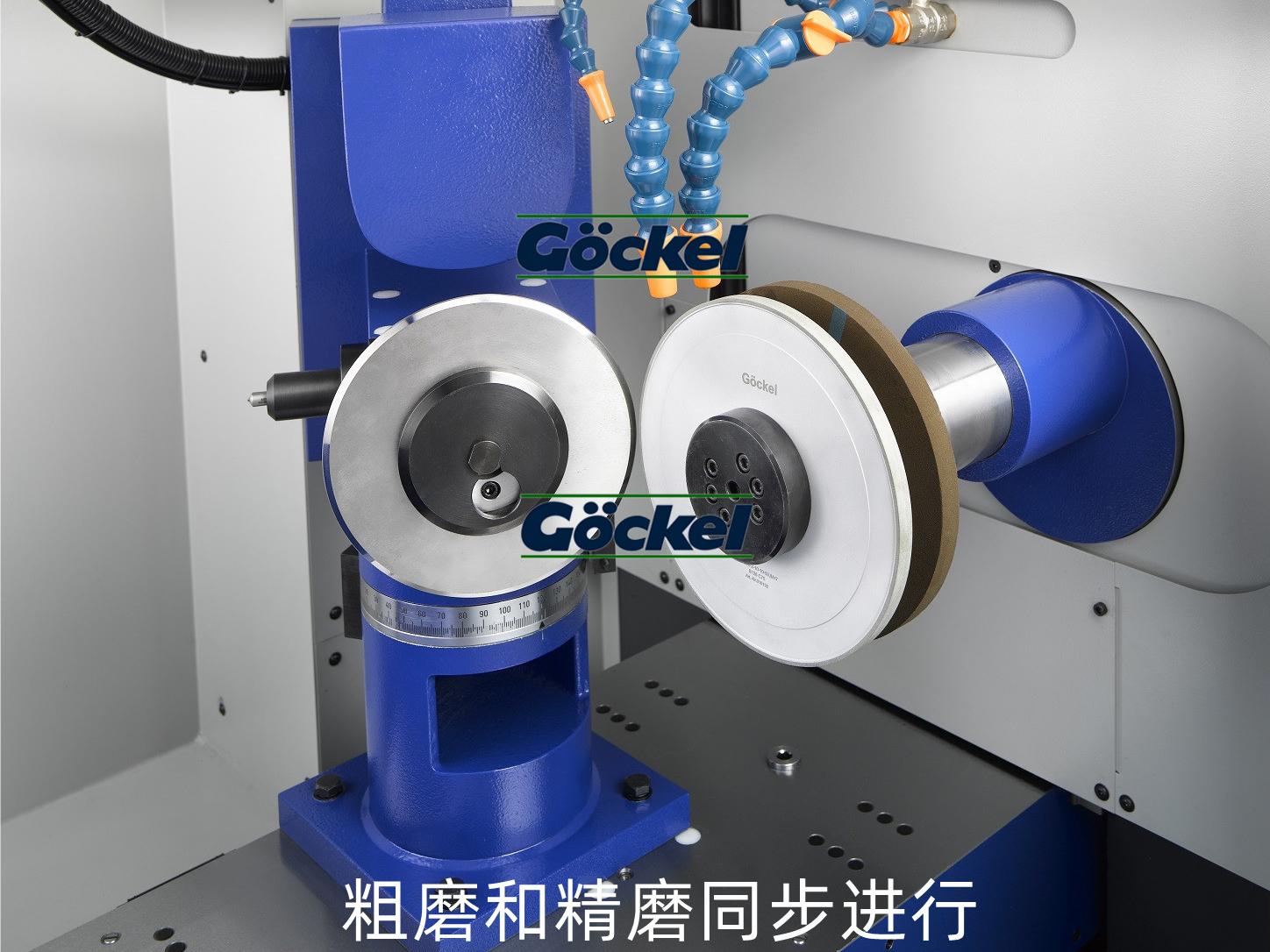

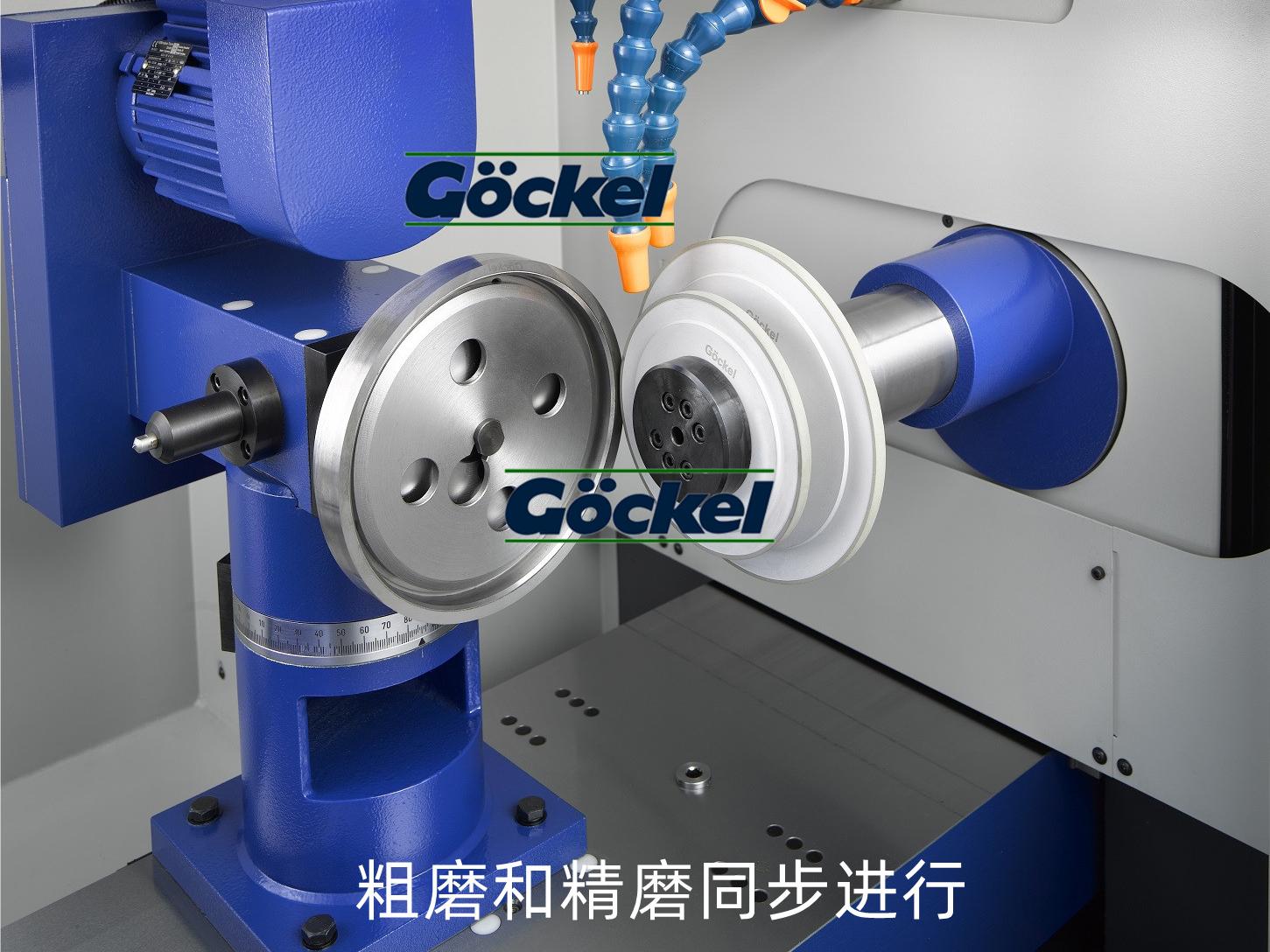

Grinding Spindle磨削主轴
Motor capacity 电机功率 2.2/4.0 kW
Speed, up to 转速 (from 1500)3500 rpm
Adjustment path 轴距可调 (X轴) 350 mm
Grinding wheel diameter, max.
砂轮最大直径 200 mm
Grinding wheel bore 砂轮内径 50.8 mm
traversing speed of circumferential grinding
圆周磨削速度
X - axis 2000 mm/min.
Work piece Spindle 工件主轴
Motor capacity 电机功率 0.55/1.5 kW
Speed, up to 转速 (from 30) 300 rpm
Adjustment path轴距可调(Z轴) 400 mm
Tilting angle 旋转角度 360 °
traversing speed of circumferential grinding
圆周磨削速度
Z – axis 2400 mm/min.

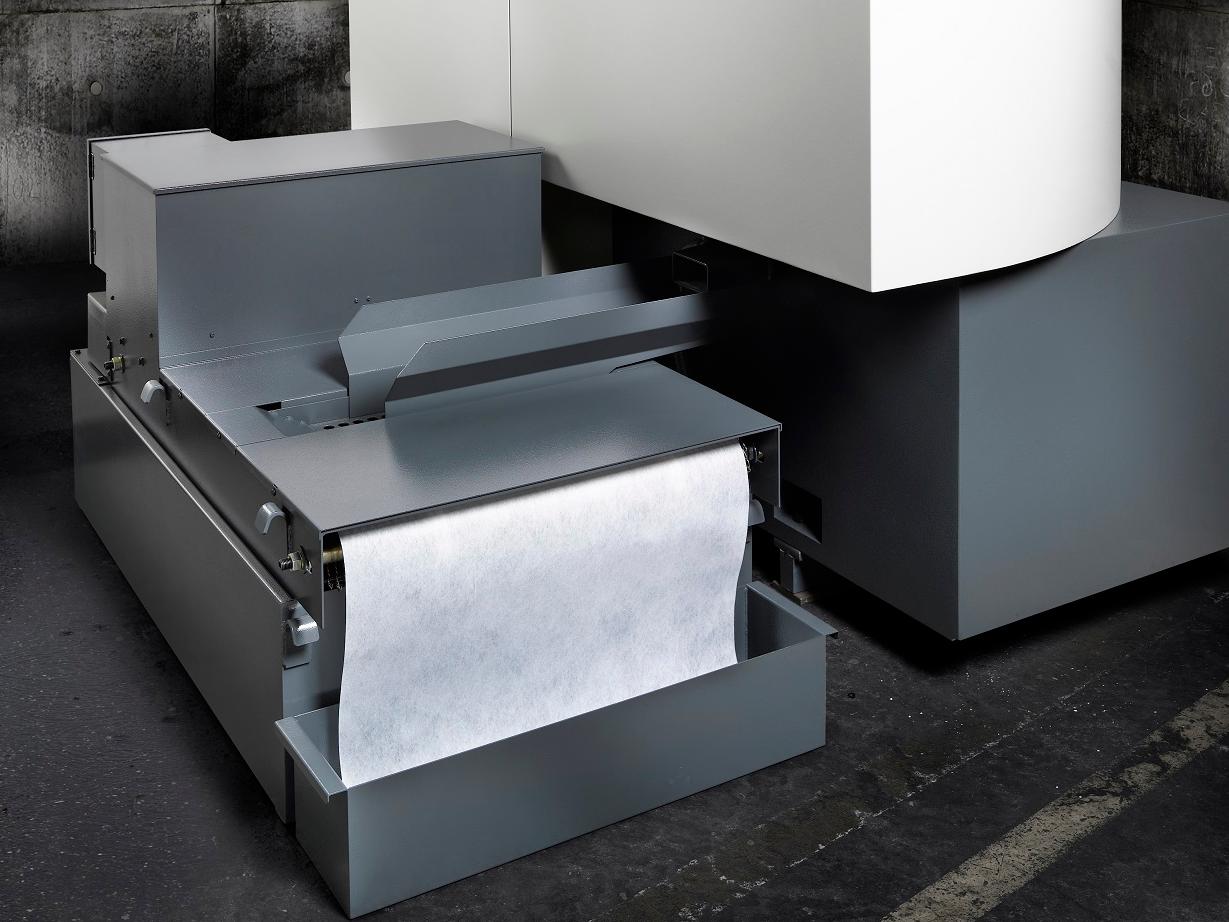

Cooling water 冷却液
Cooling pump 冷却泵 63 l/min.
Reservoir capacity 水箱容量 170 l

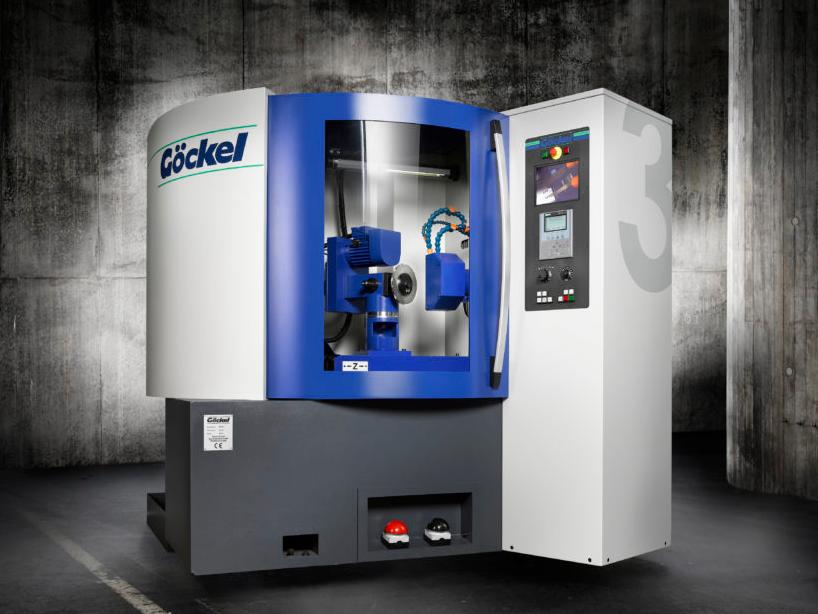

Weights and dimensions 重量和尺寸
Machine weight, net. 设备净重 1800 kg
Space requirement 外形尺寸
Width宽度 2000 mm
depth 深度 1000 mm
height 高度 1700 mm
